HOME > 제품소개 > Q.O.C
tube sheet

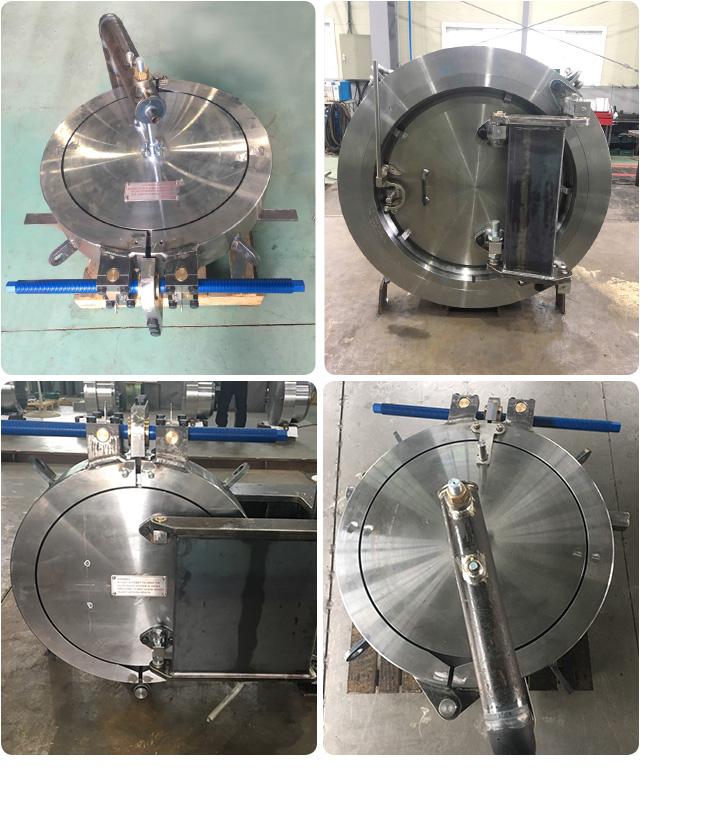

Model Locking Band Type[Quickon safelock® )
Locking Ring Type
Locking Head Type
Clamp Ring Type
Swing Bolt Type

TECHNICAL SPECIFICATION Size Range 6" to 96" Nominal diameter
Class Ratings ASME #150 through to #2500
Design Code ASME Section VIII Division 1
ASME Section VIII Division 2
ASME Section I
Closure Orientation Horizonal & Vertical
Materials ASME SA350 LF2
ASME SA105
ASME SA516-60/70
ASME SA182-F304/304L/316/316L
ASME SA240-304/304L/316/316L
Seal Material NBR, HNBR, FPM(Viton). EPDM
(Other material available on request.)
Special Closure Finish 316/316L Stainless Steel Overlay.
Options Safety Interlock Device
NOT Inspection
Hydro Test
Spare (Gasket, Bolt/Nut etc.)
FEA

ORDERING DATA 1.Quantity
2.Size
3.Material
4.Design Pressure
5.Design Temperature
6.Application - Horizontal & Vertical
7.ASME Stamp it required.
8.Gasket Material
9.Matching Pipe Size
10.Corrosion Allowance
